Product Details
＋

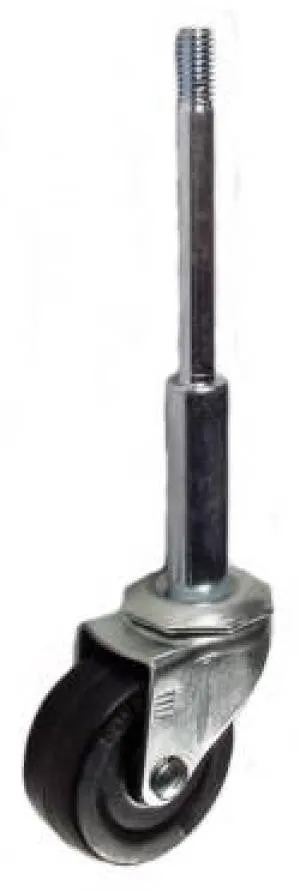

2" x 1" Soft Rubber Wheel Ladder Caster with 5/16" Threaded Stem - Part # Q832021SR
This caster is designed for rolling ladders and is to be used with part#
The stem has a total length of 4-7/8". The thickest part, starting from the base of the stem, measures .565" in diameter and is 1-7/8" long. The skinner part of the stem above this measures 5/16" and is 3" long with the top part being threaded and measurinh 5/8" in length.
Specifications:
| Load Capacity (lbs.): 80 | Link to Matching Rigid Caster: N/A |
| Wheel Diameter: 2" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Soft rubber | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: Plain | Swivel Radius: 2-3/8" |
| Overall Height: 2-1/2" without stem | Swivel Construction: Double Ball Raceway |
| Stem Size: 5/16" | Temp Range: -40 to 180˚F |
| Stem Length: 4-7/8" | Wheel Color: Black |
| Thread Pitch: 18 | Weight: 1 lb. |
